Sewers for Adoption
Adoptable pumping station control panels for UK water authorities
Kiosk-mounted panels built to Sewers for Adoption and each authority's own amendments, ready for handover.
Three authorities
United Utilities, Anglian Water and Severn Trent specifications on file. Others on request.
Kiosk supplied
Single or double door GRP kiosk, fitted and wired.
Handover documentation
Drawings, test certificate, DoC and O&M information.
Shorter lead times
Standardised builds mean weeks, not months.
An adoptable pumping station panel has to satisfy the water company that will own it, not just the developer who pays for it. We build to Sewers for Adoption, the Design and Construction Guidance that replaced it, and the specific amendments and deletions of United Utilities, Anglian Water and Severn Trent, and we supply the documentation the authority's engineer will ask for at handover.
What the authorities ask for
Each water company publishes its own variations: kiosk type and colour, telemetry outstation, hours run and ammeters, generator inlet, ultrasonic level control, specific labelling and drawing conventions. We keep these specifications on file and build to the current version. If you send us the adoption agreement or the authority's technical requirements we will confirm compliance before we quote.
What we supply

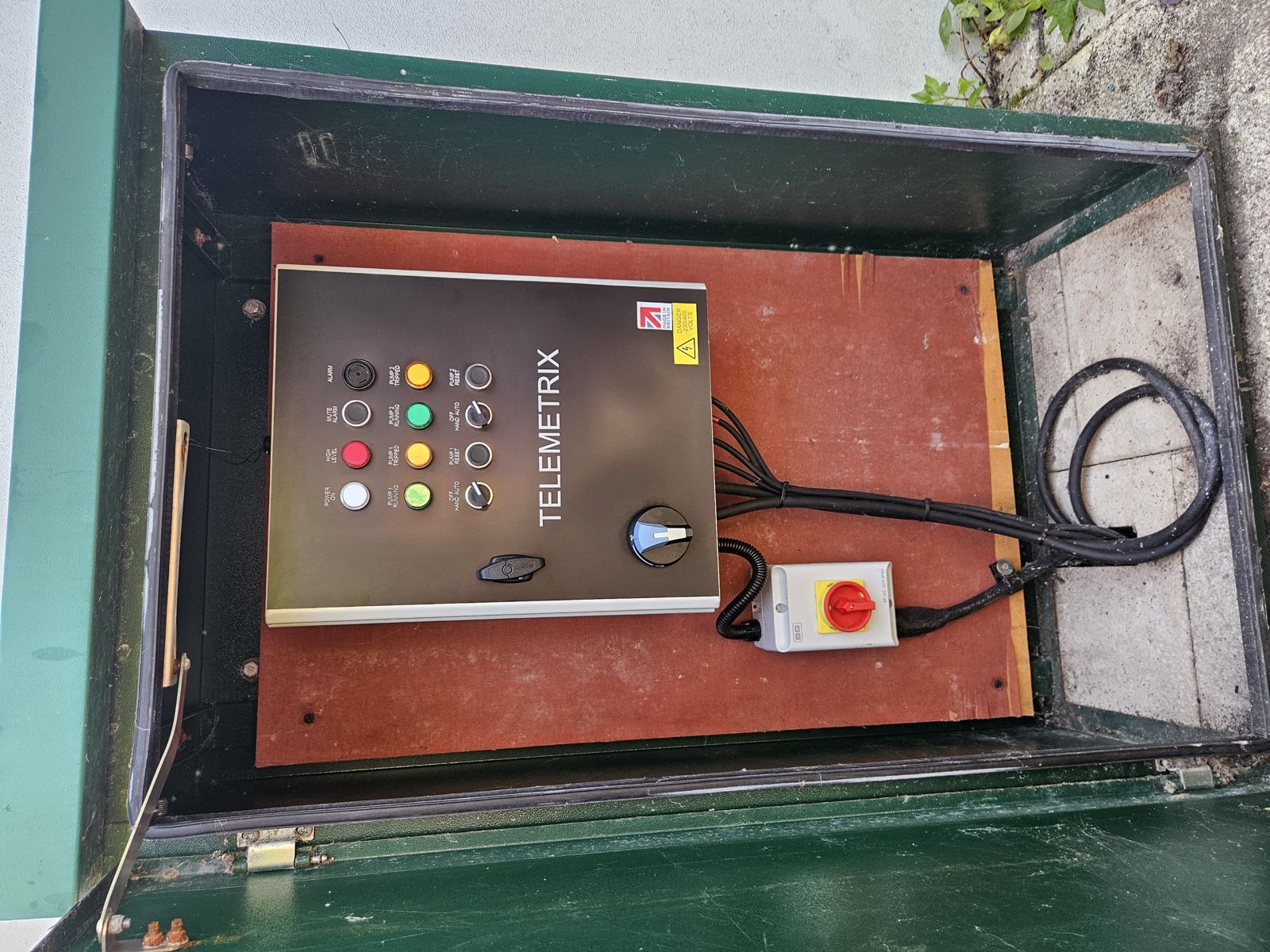

- Kiosk-mounted control panel to the authority's specification, GRP kiosk supplied and fitted.
- Telemetry outstation wiring and volt-free signals to the authority's schedule.
- Level control by ultrasonic or radar head with float backup, as required.
- Generator inlet, heater, light and socket.
- Wiring diagrams, test certificate, declaration of conformity and O&M information for the handover pack.
Sector lead: John Davey
John has more than 20 years in the industry and leads our adoptable work, checking each panel against the relevant specification and advising clients on what the authority will and will not accept.
Specification
| Compliance | Sewers for Adoption 7th/8th edition and Design and Construction Guidance; authority amendments and deletions |
|---|---|
| Authorities | United Utilities, Anglian Water, Severn Trent; others on request |
| Pumps | Typically 2, DOL or star/delta |
| Level control | Ultrasonic or radar with float backup, or floats |
| Telemetry | Outstation wiring and volt-free signals per authority schedule |
| Enclosure | GRP kiosk, single or double door, with panel inside |
| Documentation | Wiring diagrams, test certificate, declaration of conformity, O&M |
| Built to | BS EN 61439-2, BS EN 60204-1, BS 7671 |
Every panel ships with its wiring diagram, a test certificate and a 12-month warranty.
Price and lead time
Priced per project against the authority's specification. Send the adoption requirements and pump details for a quotation.
Typically 3 to 5 weeks including kiosk, depending on the authority's requirements.
Frequently asked questions
Jobs we have done with this range
All case studies →
Pump service contractor, West Sussex
Three Telemetrix panels for West Sussex County Council's landfill pumping stations
The contractor look after the pumping infrastructure at West Sussex County Council's landfill sites under a long-term asset management contract. They fitted three wastewater high-level Telemetrix panels so the council gets live status and alerts, and maintenance can be preventative rather than reactive.
Read the case study
Pump specialist, Oxfordshire
A star/delta Telemetrix panel, turned round quickly for an Oxford campus
A pumping station on a university campus in Oxford needed its control panel replaced, along with the pump and the float switches. The pump specialist specified a bespoke star/delta Telemetrix panel with remote monitoring, and the whole job, panel, floats and a new 6kW Sulzer pump, was done in a morning.
Read the case study
Pumping station specialist, South East
Telemetrix as standard across a pump service contractor's stations
The contractor refurbishes and maintains pumping stations across the South East, and now fit Telemetrix as a matter of course: three side by side at one site, four in a single week at others, six and counting. They install them and then monitor them for their clients.
Read the case studyRelated panels
Pump control panels
Pump control panels
Panels for 1 to 6 pumps, direct-on-line to inverter, built in Stoke-on-Trent and held in stock.
Standard wastewater panels from £906 + VAT (single pump DOL) and £1,245 + VAT (twin pump DOL).
View Pump control panels
Wastewater control panel with remote monitoring
Telemetrix
Industrial switchgear plus cloud connectivity over 4G, WiFi or Ethernet. Email alerts free for life; texts 10p each.
£1,798 + VAT for the dual pump DOL panel (up to 18A) and £4,300 + VAT for star/delta (up to 41A).
View Telemetrix
Wastewater control panel with HMI
Basix View
Basix with a built-in touchscreen and a 4-20mA input, so it runs from a radar or hydrostatic sensor and shows the level on the door.
Basix panel price plus the HMI for 4-20mA input (£1,752 + VAT) and your chosen sensor.
