Form 4 or Form 2 enclosures, what does it mean?

When it comes to electrical control panels, one of the key considerations in design and specification is the “Form of separation.” This concept, defined under the IEC 61439 standard (adopted in the UK as BS EN 61439), outlines how live parts within an enclosure—such as busbars, terminals, and functional units—are segregated from one another. Understanding the difference between each Form, particularly Form 1 and Form 2, is essential for anyone involved in panel design, installation, or maintenance.

What Does “Form” Mean?

The Form classification of a panel essentially describes the physical separation between the different internal components. The aim is to improve safety, limit the impact of faults, and enhance serviceability. As the Form number increases (from Form 1 to Form 4), so does the degree of internal segregation, offering greater protection but also increasing cost and complexity.

At G&G Controls, many of the panels we design and manufacture fall into Form 1 or Form 2 categories, depending on the level of safety, access, and maintenance flexibility required by the application.

Form 1: Simplicity Without Separation

Form 1 enclosures represent the most basic level of internal layout. In a Form 1 panel, there is no separation between the busbars, terminals, and functional units. All components share the same internal space, and there are no partitions or barriers to distinguish one area from another.

This approach keeps costs down and is often used in simpler applications where risk is low and maintenance requirements are minimal. However, the lack of internal segregation means that any work carried out inside the panel usually requires a full system shutdown. There's also a greater risk of faults affecting multiple circuits, as there’s no containment between different parts of the system.

Form 1 is suitable for straightforward installations where minimal disruption during servicing is acceptable—such as small distribution boards, low-power applications, or where maintenance is rare.

Form 2: Introducing Functional Segregation

Form 2 represents a step up in both safety and functionality. In this configuration, the panel includes fixed barriers or partitions to separate each functional unit from the others. This means that while the busbars and terminals may still share space, each function—such as a motor starter or lighting circuit—sits in its own isolated compartment.

The advantage of this separation is clear: individual sections of the panel can be accessed and maintained without needing to shut down the entire system. This reduces downtime, enhances safety, and limits the chance of a single fault affecting other parts of the system.

Form 2 is commonly chosen for control panels with multiple distinct functions or where routine maintenance is expected. It’s an excellent balance between operational flexibility and cost-effectiveness, and a popular choice for panels that power machinery, pumps, or instrumentation.

Comparing Form 1 and Form 2

The choice between Form 1 and Form 2 often comes down to how the panel will be used and maintained. Form 1 is straightforward, low-cost, and compact—ideal for small-scale or low-risk applications. In contrast, Form 2 provides a more refined internal layout, offering enhanced protection and better access for servicing without the need to isolate the entire board.

Form 4: Maximum Segregation for Maximum Protection

Form 4 offers the highest level of internal separation defined under the BS EN 61439 standard, and is typically reserved for installations where operational continuity, personnel safety, and fault containment are absolutely critical.

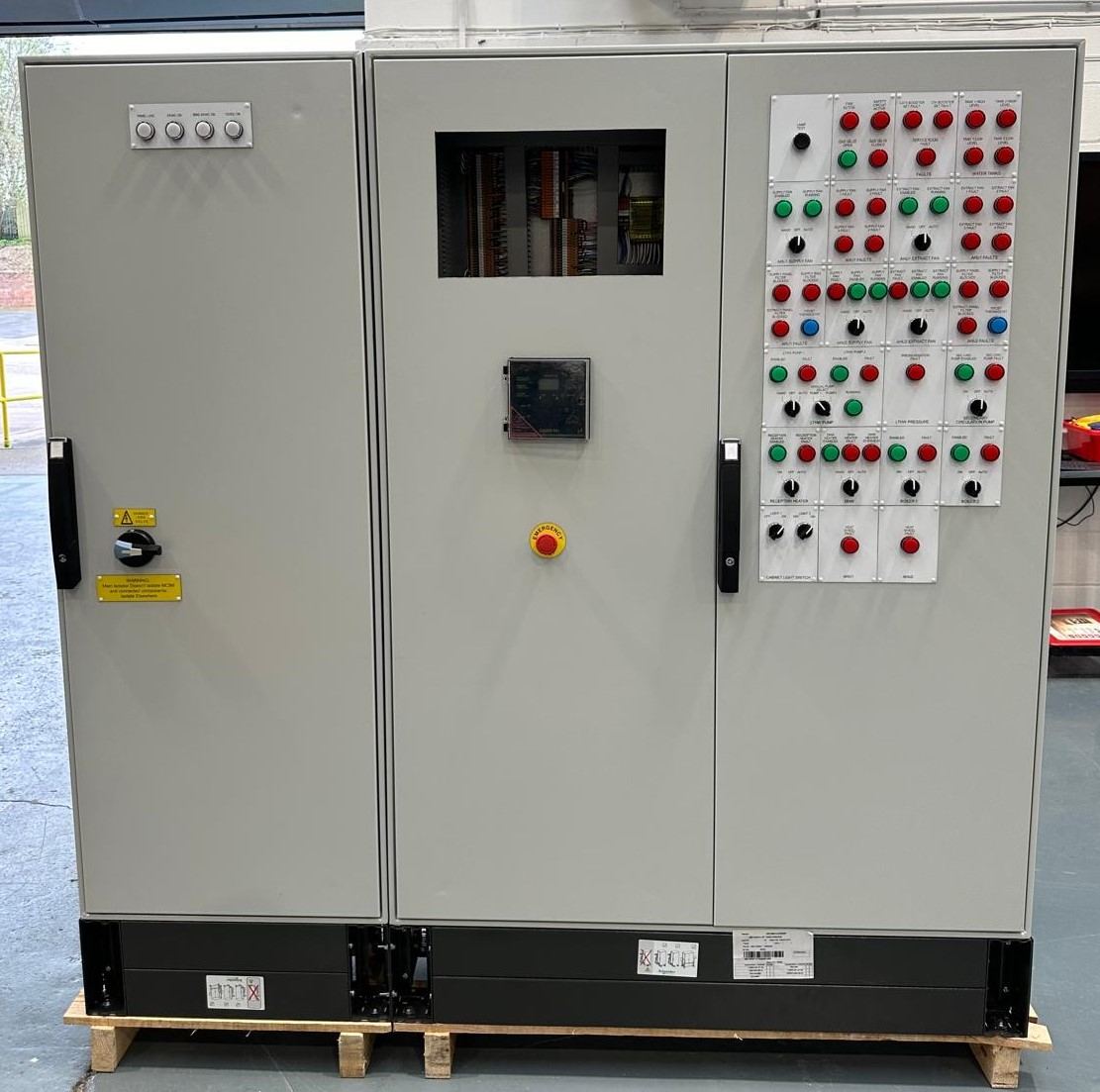

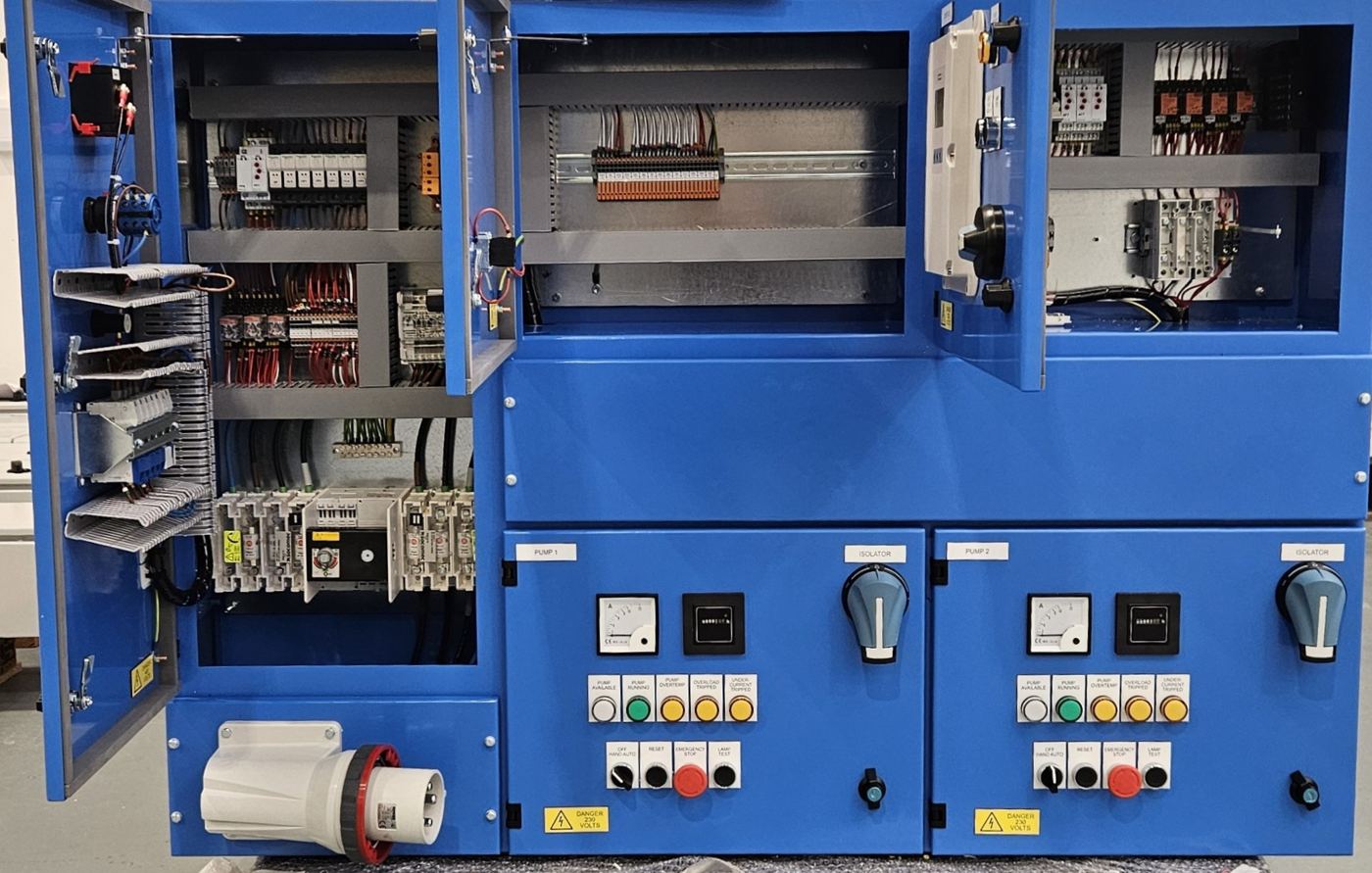

In a Form 4 control panel, each functional unit, is completely segregated—not only from other units, but also from the busbars and terminals. For example, a Form 4 control panel controlling three motors would have a separate (segregated) section for each motor plus the busbar section for power distribution, plus controls section, etc. This ensures that any maintenance that needs to be carried out has no impact on the other pieces of equipment.

Form 4 is further divided into subcategories (Form 4a and 4b) depending on how the cabling and terminals are arranged in relation to the functional units:

• Form 4a: Terminals for external cabling are in the same compartment as their associated functional unit.

• Form 4b: Terminals for external cabling are in a separate compartment from both the busbars and functional units, providing the highest degree of isolation.

The benefits of Form 4 are significant. It allows for safe maintenance of individual components without de-energising the entire system, and provides strong containment in the event of an internal fault—helping to prevent cascading failures. This makes Form 4 the go-to choice for control panels used in high-risk or business-critical environments such as pharmaceutical plants, water treatment works, airports, and data centres.
