Generator fuel systems
Fuel transfer control panels for day tanks and generators
Single and dual pump fuel transfer control from bulk tank to day tank, with level control, safety relay and optional touchscreen.
From £790 + VAT
Single pump standard panel. Dual pump £1,175 + VAT.
2 or 3 day tanks
Add tanks as options.
Safety relay
Interlocked shutdown on overfill or leak.
Touchscreen
Optional HMI for levels and alarms.
A fuel transfer panel keeps a generator's day tank topped up from the bulk tank: it starts the transfer pump on low level, stops it on high, and raises alarms for overfill, leak and pump fault. Ours are built to the same standard as our pump panels and come in single and dual pump versions, feeding two or three day tanks.
Configurations
- Single pump, one day tank (FTS series).
- Dual pump with duty/standby.
- Two or three day tank versions, each with its own level control.
- Safety relay option for interlocked overfill and leak shutdown.
- Touchscreen option to show tank levels, pump status and alarms on the door.
Built for plant rooms

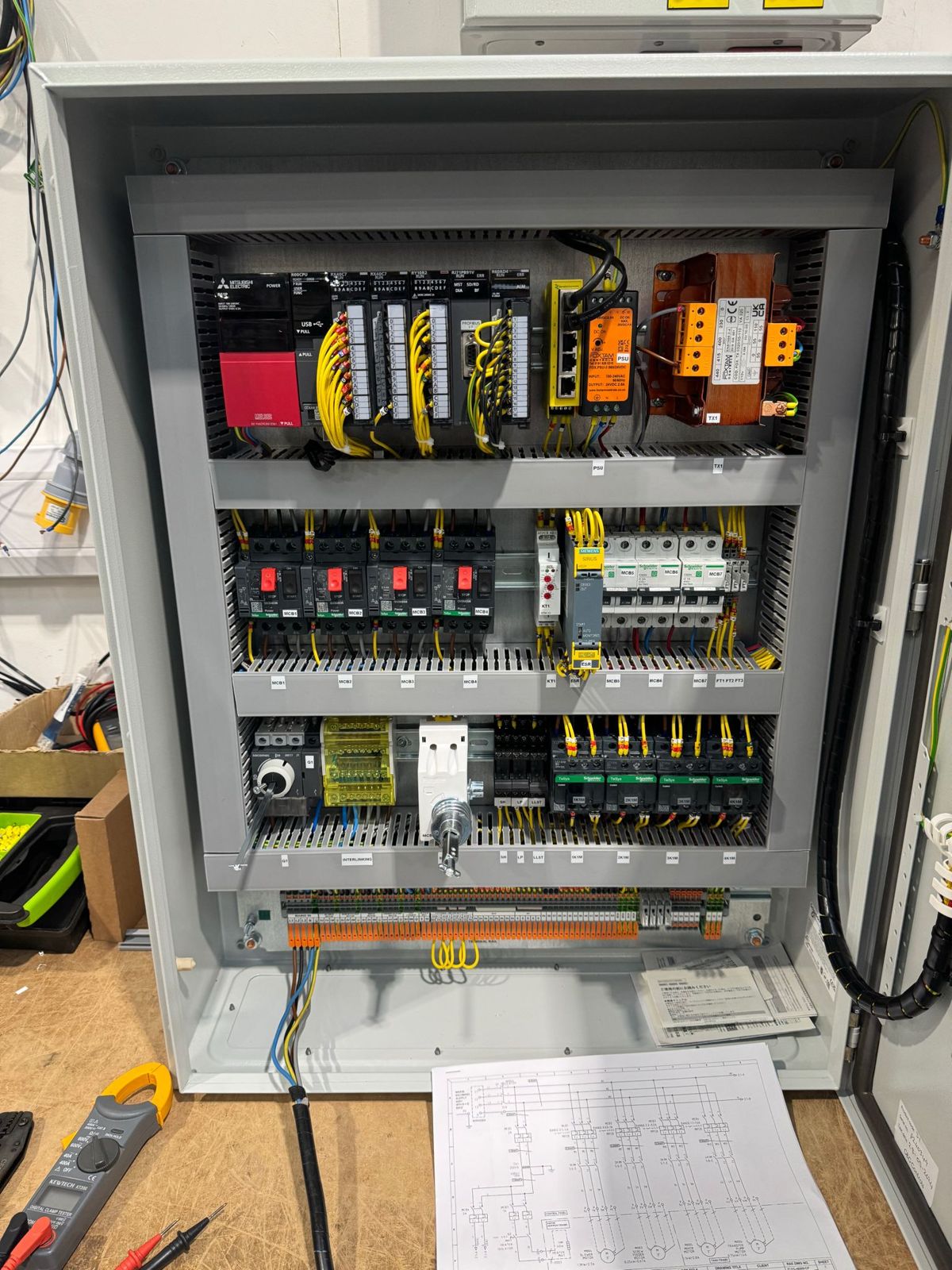

Steel enclosure, door-interlocked isolator, WAGO terminals, volt-free contacts for the generator controller or BMS. Wiring diagram and test certificate with every panel.
Specification
| Pumps | 1 or 2 (duty/standby) |
|---|---|
| Day tanks | 1, 2 or 3 |
| Supply | 230V 1ph or 400V 3ph |
| Level control | Float or probe inputs per tank |
| Alarms | High level, low level, leak, pump fault; volt-free outputs |
| Enclosure | Powder-coated mild steel |
| Warranty | 12 months |
Product codes: FTS###S, with -0-2, -0-3, -0-E and -Y option suffixes. Full code tables are on the pump panels page.
Every panel ships with its wiring diagram, a test certificate and a 12-month warranty.
Options
Options
- 2 day tanks (+£147)
- 3 day tanks (+£178)
- Safety relay (+£194)
- Touchscreen (+£583)
Options are priced on your quote, itemised, so you can see what each one adds.
Price and lead time
Single pump £789.50 + VAT; dual pump £1,175 + VAT. Options are priced on your quote.
List price. Trade and volume discounts available.
10 to 20 working days.
| Panel | Code | Single pump | Dual pump |
|---|---|---|---|
| Standard fuel transfer panel | FTS###S | £789.50 | £1,175 |
Options (2 or 3 day tanks, safety relay, touchscreen) are priced on your quote.
All prices shown are list prices. Trade, account and volume discounts are available: ask when you request a quote. Prices exclude VAT and delivery. Issued 1 May 2026. Specifications are provisional pending sign-off of a wiring layout. Errors and omissions excepted.
